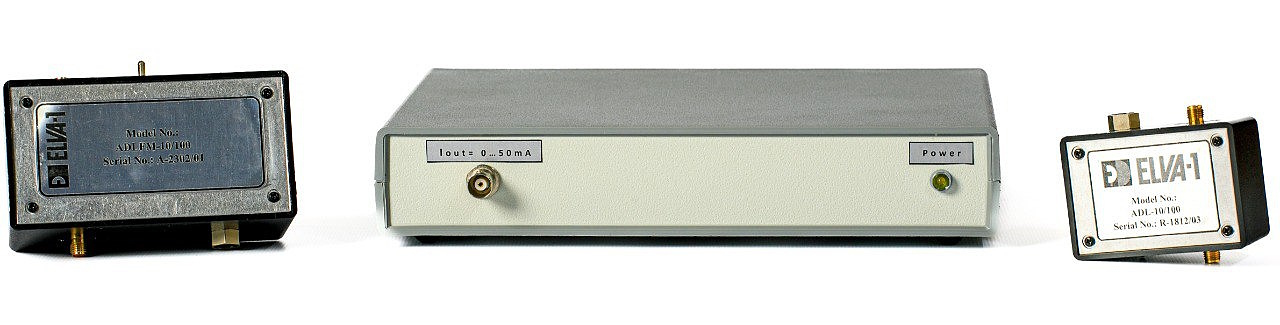

Drivers for Attenuators VCVA Series

ELVA-1 offers drivers series for control of Solid-State electrical controlled attenuators.

Analog Linear Driver, Part No. ADL-10/100

 This deriver converts 0 -  +10V input volts to 0 - +100mA biasing current for feeding of attenuator.

Specifications

Input signal:                                 0..+10 V;

Output current:                             0…100 mA;

Power supply:                               +/-12 VDC 120mA(max);

Control Input/Output connectors:     SMA female.




Analog Linear Driver with fast switching mode, Part No. ADLFM-10/100

This deriver provides two modes of operation: ‘slow mode’ and ‘fast mode’. In ‘slow mode’ driver operates as a linear converter voltage  to  current  and  provides  0 -  +10V input  voltage  range  volts  to 0 - +100mA output current. Second mode allows to use VCVA as "on/off" fast modulator. In "fast mode" the driver applies a short negative voltage pulse to accelerate the fall time. Typical Response Function of the attenuation for VCVA is shown on the plot below.

Specifications for slow mode


Input signal:                                   0..+10 V;

Output current:                               0…100 mA;

Power supply:                                 +/-12 VDC 120mA(max);

 Control Input/Output connectors:      SMA female.




 Attenuation response function for ‘slow’ and ‘fast’ modes



GPIB and RS-232 Driver, Part No. GPDVC-15/100/RS

This deriver can operate via GPIB and RS-232 interfaces. User should send 12 bits code for setting desired attenuation. The driver converts sent code in biasing current in range 0-100 mA.

Specifications

Input range:                            12 bits;

Output current:                        0…100 mA;

Power supply:                          100-240V AC;

Control Output connectors:        SMA female.




Digital Drivers

Upon request Elva-1 can design driver with any digital interface. Please contact with factory.
